Speedo Marine (Pte) Ltd.

After Cooler ( Specialised Equipment & Accessories )
Product Code & Goods Description
7553.9
Chargeable weight: 123.000 Kg

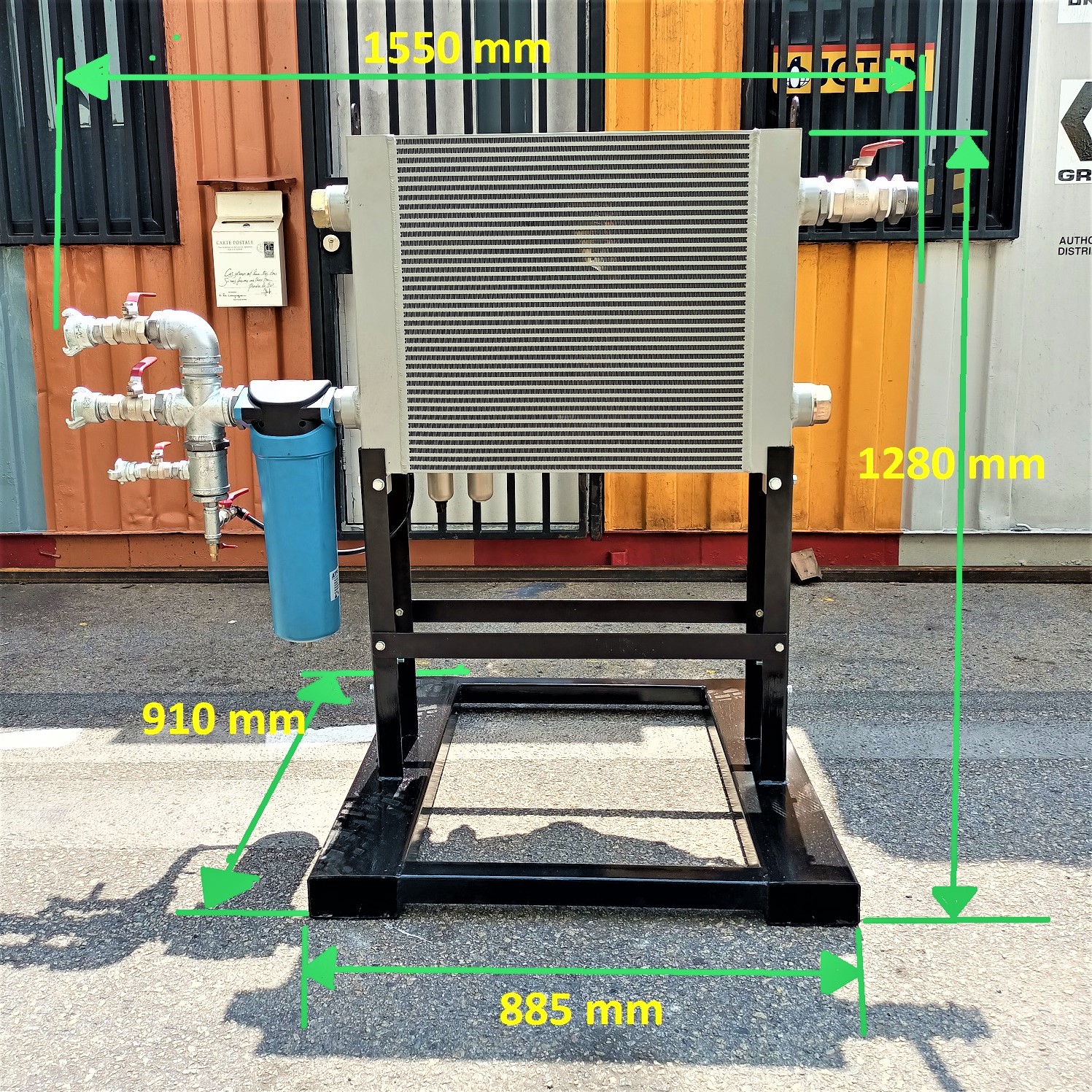

Dimensions : 155.000 x 91.000 x 128.000 cm

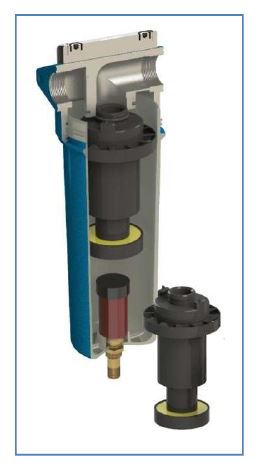

Speedo Air-cooled After Cooler offer compact, high cooling efficiency and low pressure drop for water separation in compressed air.





Quantity
add to cart Download brochure Download Manual
Technical Specifications

Flow Rate : 550 cfm / 935 m3/h / 15575 l/min

Working Pressure : 7 Bar

Max Working Pressure : 16 Bar

Max Inlet Air Temperature : 120 degree celsius

Outlet Air Temperature : 9 degree celsuis higher than ambient temperature

Ambient Temperature : 35 degree celsius

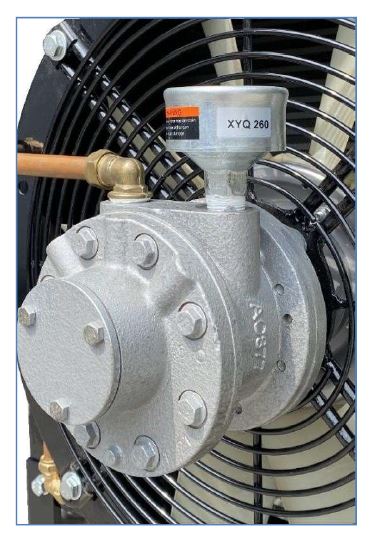

Air Motor Capacity : 5.25 hp

Inlet Manifold : 1 port x 2" ball valve

Outlet Manifold : 2 ports x 1-1/4" ball valve and 1 port x 3/4" ball valve
