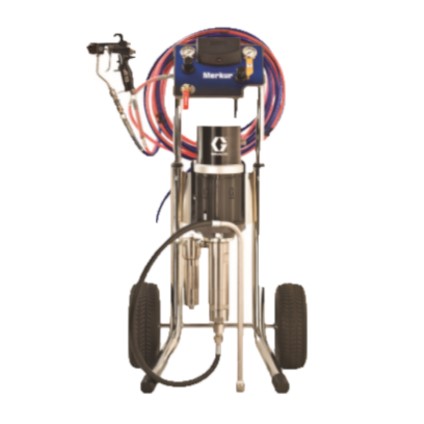

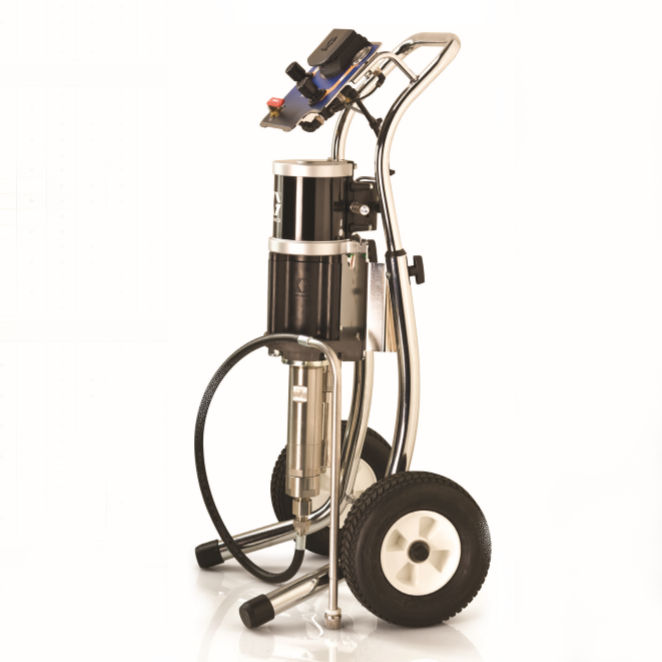

Merkur Air-Assist and Airless Packages (Non-Heated) ( Spray Painting )
Product Code & Goods Description

The new and improved Merkur fine finish pump packages are proven to outperform and outlast other pumps in their class. With four air motor sizes and 13 different models to choose from, the new Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Features:

  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • Muffler provides low operating noise levels
  • External valve access allows for easy servicing and online replacement to minimize downtime
  • Operator Control Panel located at operator height for easy setting and monitoring
  • Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
Quantity
Technical Specifications

Maximum fluid working pressure. . . . . . . . . . . . . . . .See Models table below

Maximum pump air inlet pressure . . . . . . . . . . . . . . .100 psi (0.7 MPa, 7.0 bar)

Maximum gun air inlet pressure . . . . . . . . . . . . . . . .100 psi (0.7 MPa, 7.0 bar)

Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Models table below

Air inlet size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8-18 npt(f)

Ambient air temperature range . . . . . . . . . . . . . . . . .35°F–120°F (2°C–49°C)

Maximum fluid temperature. . . . . . . . . . . . . . . . . . . .160°F (71°C)




First Digit


Second and Third Digits (Ratio)


Fourth Digit (Mounting Type)


Fifth and Sixth Digit (Components Included)

G

(Merkur Package)

10

10:1

C

Cart

See Tables, pages 7 to 15 of manual 312797

15

15:1

T

Stand

18

18:1

W

Wall

23

23:1



24

24:1

28

28:1

30

30:1

36

36:1

45

45:1

48

48:1
