Speedo Marine (Pte) Ltd.

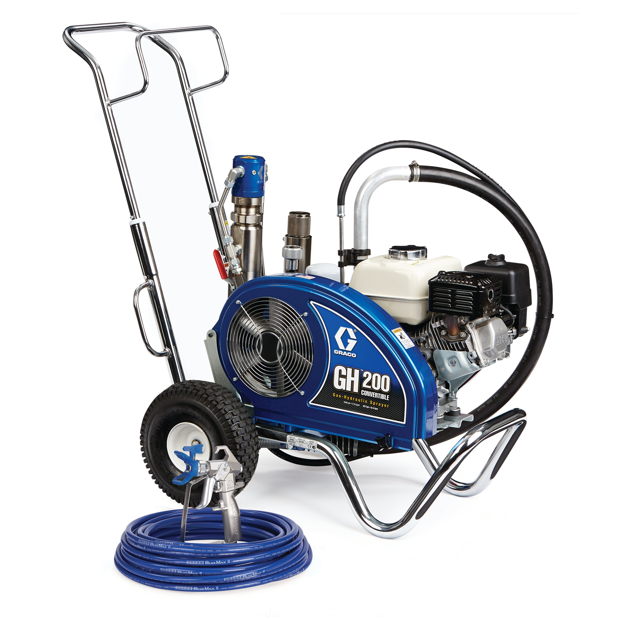

GH200 ( Spray Painting )
Product Code & Goods Description
7948.8
Chargeable weight: 196.030 Kg
Dimensions : 139.700 x 73.660 x 114.300 cm

Outfitted with a reliable Honda 160 cc (5.5 hp) engine, Graco’s GH 200 Convertible sprayer is the hydraulic solution for medium to large jobs where proven hydraulic power is demanded to get the job done every time.

Features:

Incredible Durability

  • Exclusive crush-proof rock catcher.
  • Heavy-duty frame can be tilted on its nose for quick service in the field.
  • Shroud support protects belt from jobsite damage.

Less Maintenance

  • Flow-through Easy Out pump filter has an oversized surface and flows from the inside out, keeping the filter from collapsing.
  • 4-bolt hydraulic head stabilizer keeps pump parts from prematurely loosening.
  • Isolation-mounted engine cuts down on vibration.
  • O-ring high pressure hydraulic fittings and form-fitted hydraulic lines eliminate leaks.
  • High efficiency hydraulic motor runs quiet.

Reduced Downtime

  • Exclusive ProConnect system allows for jobsite pump removal and replacement (ProContractor Series only).
  • Uses standard hydraulic fluid that only needs to be changed once a year.
  • Hydraulic fluid tank design promotes efficient cooling.

Honda Engine

  • Compact, lightweight, and powerful, Honda engines are reliable, technologically advanced, and easy to start.
  • Oil Alert shuts down engine if oil level drops too low, preventing damage.
  • Contractor preferred.

High-Capacity Cooling System

  • A hydraulic pump is only as good as its cooling system, and Graco’s innovative design allows the pump to run cooler and more efficiently.
  • Innovative hydraulic reservoir is tapered on the bottom, allowing easier and more thorough fluid changes.
  • Cooling fins on reservoir deflect heat away from sprayer.
  • No special hydraulic fluid needed.

Rugged, Durable Cart Design

  • With a Graco sprayer, it’s not just the mechanical parts that are built to last - our carts are built to deliver years of performance.
  • Thick chrome over welded steel withstands rugged environments.
  • Full pneumatic wheels absorb impacts and vibrations.
  • Retractable handle doubles as coiled hose storage.
  • Tilts on its nose for service in the field.

Easy Out Pump Filter

  • The Easy Out pump filter is designed to filter from the inside out so filters won’t get stuck or collapse when filled with dirt or debris.
  • Large 19.5 square inch filtering area reduces tip clogs and ensures a quality finish.
  • Vertical filter removes with the cap for less mess.

High-Efficiency Hydraulic Motor

  • Graco’s hydraulic pump delivers rock-solid performance time after time and keeps you up and running.
  • Faster, more responsive changeover.
  • O-ring sealed fittings and form fitted hydraulic lines prevent leaks.
  • Fewer moving parts mean less maintenance and longer life.

Endurance Pump

  • Graco’s Endurance Pump is the most rugged and reliable pump on the market today.
  • Long-life V-Max Blue™ packings.
  • Chromex™ rod and hardened stainless steel sleeve deliver superior reliability and life.
  • Knock-off foot valve allows for quick access.

Heavy-Duty Prime Valve

  • Maintenance-free design withstands high-pressure dumping.

Indoor & Outdoor Use

  • Quickly swap the gas engine for an electric motor in seconds—without tools!

Ready To Work

Everything you need to get spraying—RAC X™ SwitchTip™, spray gun and 50 feet of BlueMax™ II hose is included.

Quantity

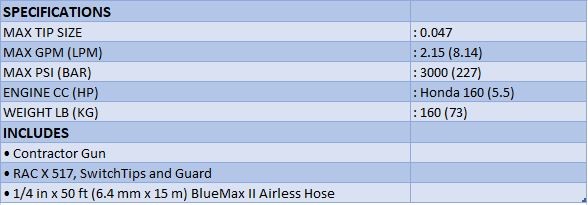

Technical Specifications
