KING SPRAYER ( Spray Painting )
Product Code & Goods Description

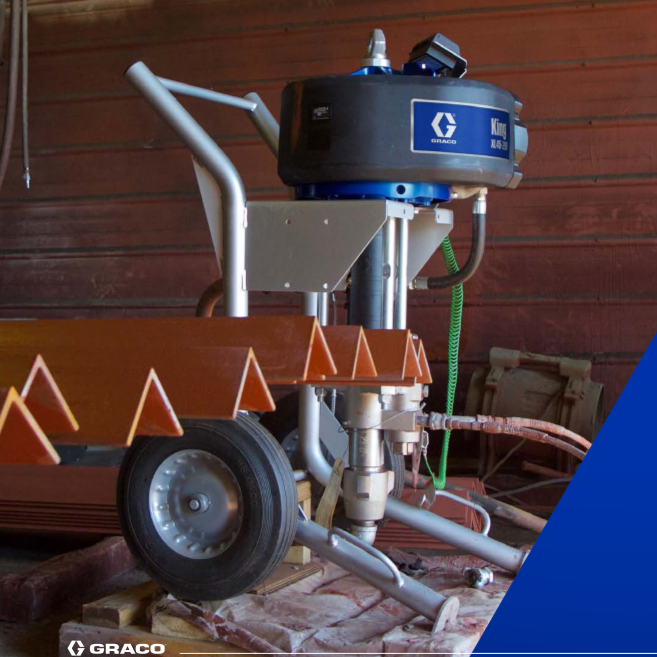

The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before.

The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.


  • Simple Maintenance with removable valve cover and easy access to poppet valves
  • Reduced Icing Potential by up to 70% with thermally isolated poppets
  • Less Pulsation due to smoother changeover and no pressure drops, resulting in a better finish
  • Improved Sealing And Strength with enhanced edge loading and seven throat packings instead of five
  • Multi-Gun Capabilities with more powerful and efficient changeovers, the ability to spray with up to six guns is now a reality
Technical Specifications
Motor Package XL 3400 XL 6500 XL 10000
Output per Cycle 180-220cc 145-290cc 250-430cc
Maximum Working Pressure 3150-3800 psi
(217-262 bar, 21.7-26.2 MPa)
4550-7250 psi
(313-500 bar, 31.3-50.0 MPa)
4800-7250 psi
(88-100 bar, .07-.60 MPa)
Maximum Air Input Pressure 100 psi
(7.0 bar, .07 MPa)
80-100 psi
(5.5-7.0 bar, .07-.55 MPa)
88-100 psi
(6.0-7.0 bar, .07-.60 MPa)
Output at 60 Cycles/min 2.9-3.4 gpm
11.0-12.9 lpm
2.3-4.6 gpm
8.7-17.0 lpm
4.0-6.7 gpm
15.1-25.4 lpm
