Speedo Marine (Pte) Ltd.

Sanitary Equipment ( Fluid Handling )
Product Code & Goods Description
4247.9
Chargeable weight: 27.669 Kg
Dimensions : 42.672 x 24.384 x 45.720 cm

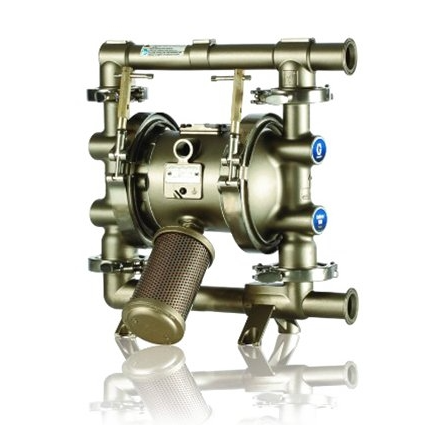

Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

Features:

  • 5 in (38 mm) Tri-clamp connection
  • All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Flow rates of 40 gpm (151 lpm)
  • High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
  • Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

Patented, lube-free air valve:

  • Three-way pilot valve for no-stick operation
  • Increase durability and reduce repair time with fewer moving parts

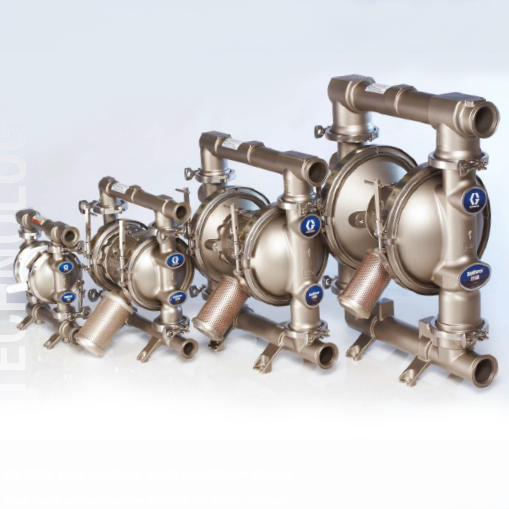

  • 1040, 1590 and 2150 SaniForce pumps use common center sections
  • 100% externally serviceable air valve

PTFE/EPDM overmolded diaphragms:

  • Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria
  • Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
  • Longer diaphragm life in abrasive applications that still require PTFE
  • Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Quantity

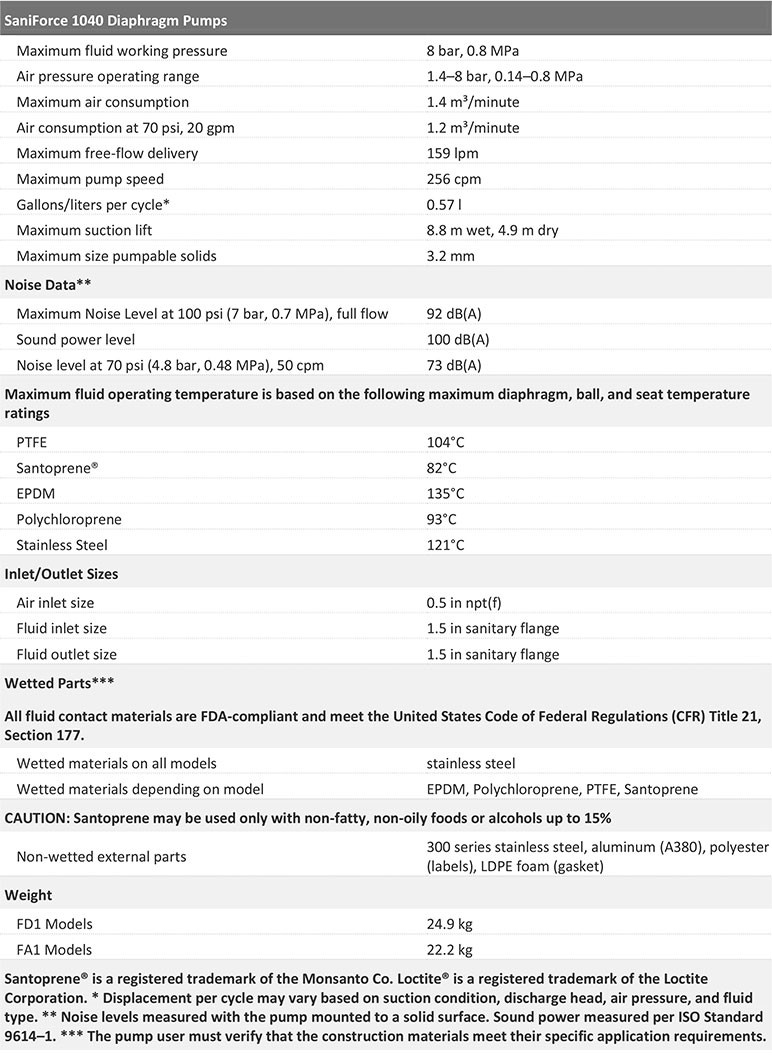

Technical Specifications
